Set Recording Schedule

You can set a recording schedule for a channel of a specific device.

1. Tap and tap Devices to enter the Device Management page.
2. Tap an added device to enter the Device Information page.
3. Tap and tap Remote Configuration to enter the Remote Configuration page.
4. Tap Recording Schedule to enter the Recording Schedule page.
5. Select a channel if the device has multiple channels.
6. Set to to enable recording schedule.
7. Set a recording schedule for a day in the week.
   1. Tap a day in the week to open the following page.

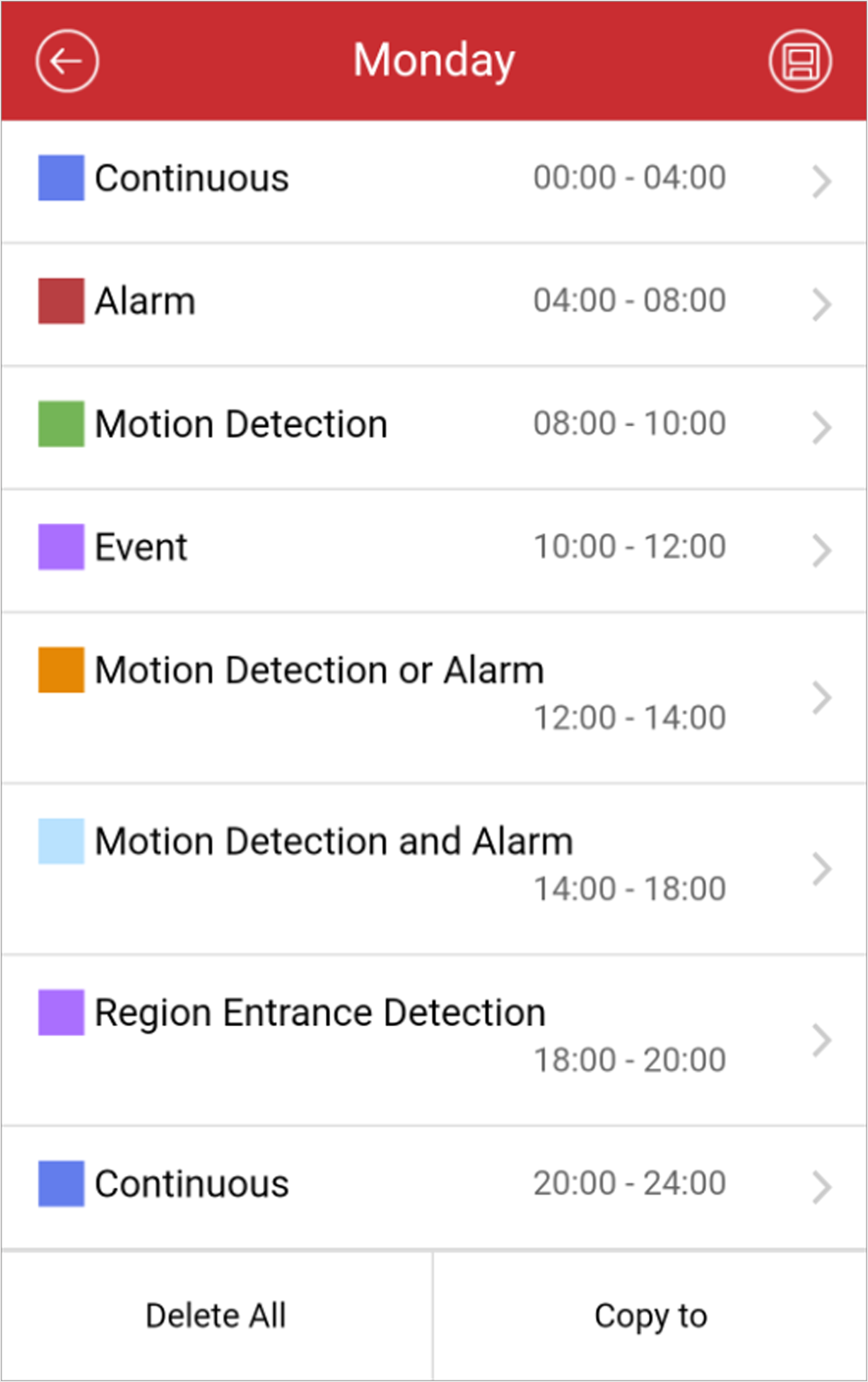

      Figure 1 Setting Recording Schedule
   2. Tap the time period to set the recording type, start time, and end time.

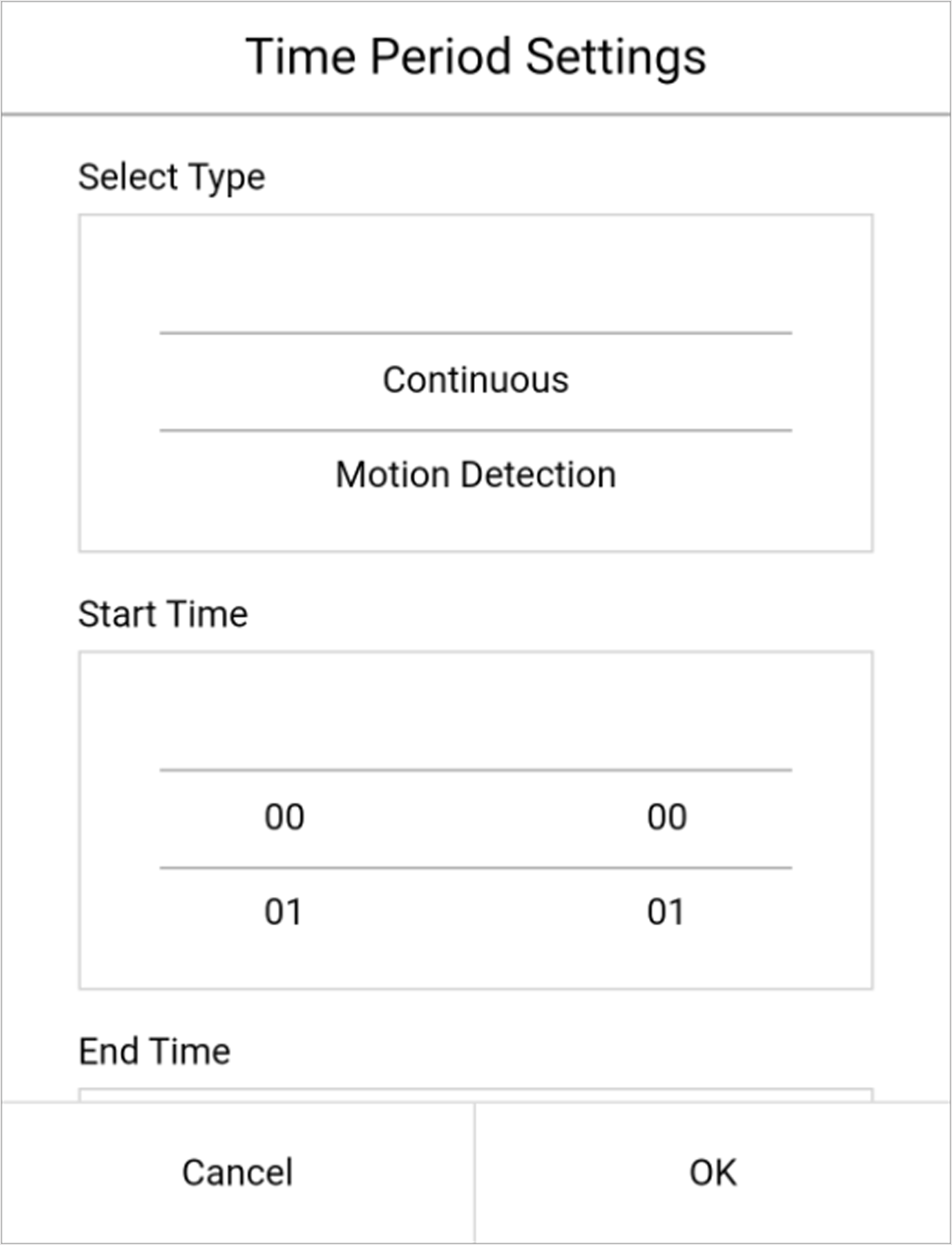

      Figure 2 Time Period Settings

      Continuous

      The video will be recorded automatically according to the time of the schedule.

      Motion Detection

      The video will be recorded when the motion is detected.

      Alarm

      The video will be recorded when the alarm is triggered via the external alarm input channels.

      Motion Detection or Alarm

      The video will be recorded when the external alarm is triggered or the motion is detected.

      Motion Detection and Alarm

      The video will be recorded when the motion and alarm are triggered at the same time.

      Event

      The video will be recorded when any event is detected.

      Note

      You can also set the recording type as detailed event type, which should be supported by the device. For details, refer to the user manual of the device.

   3. Tap OK to save the settings of the time period.
   4. Set other time periods in the day.
      Note

      Up to 8 time periods can be configured for each day. And the time periods cannot be overlapped with each other.

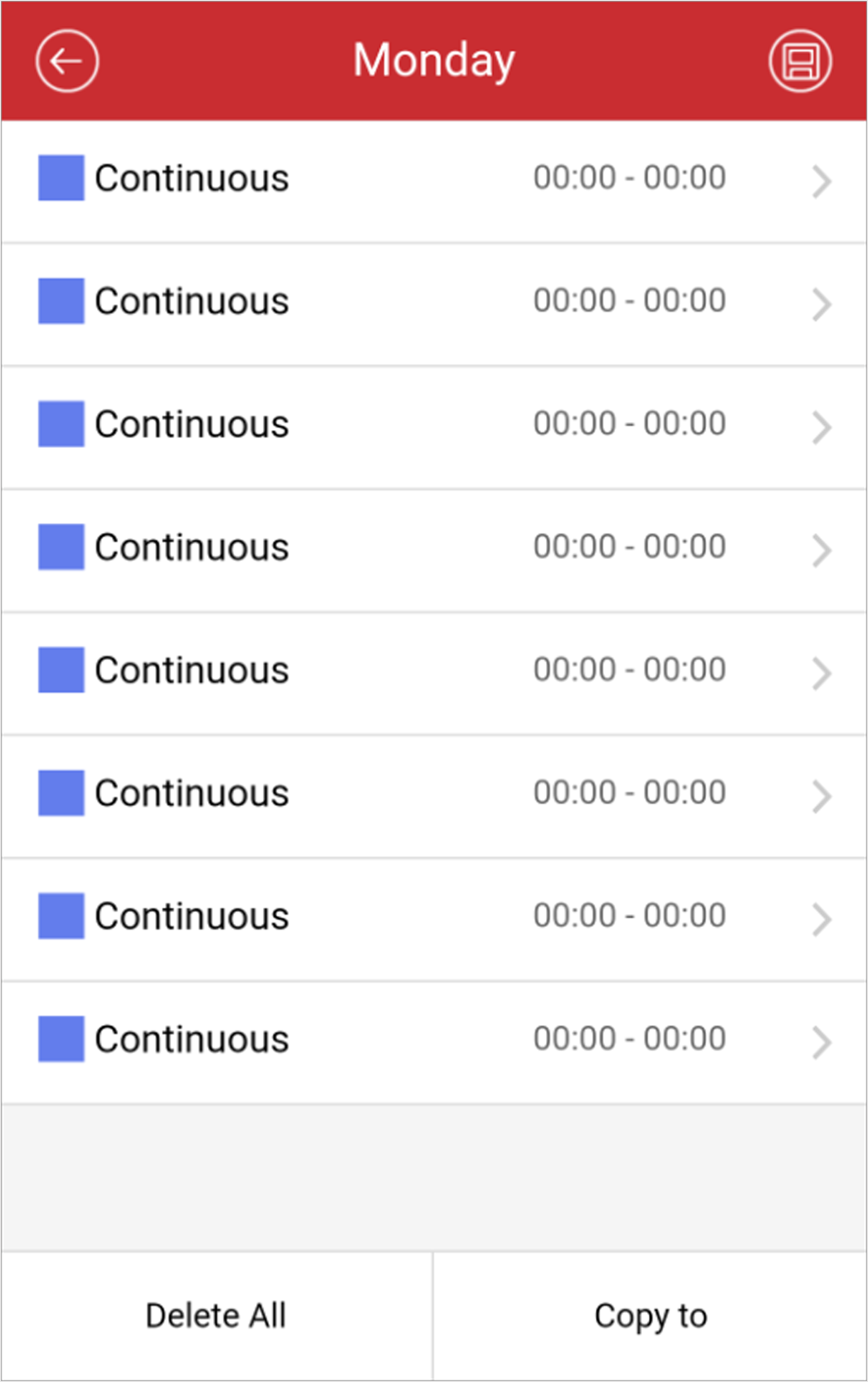

      Figure 3 Setting Multiple Time Periods in a Day
8. Optional: Perform the following operations after saving the time periods in one day.

   Option	Description
   Copy to Other Days	Tap Copy to to copy all the time periods settings to the other days in the week.
   Delete All	Tap Delete All to clear all the configured time periods.

9. Tap to save the settings.

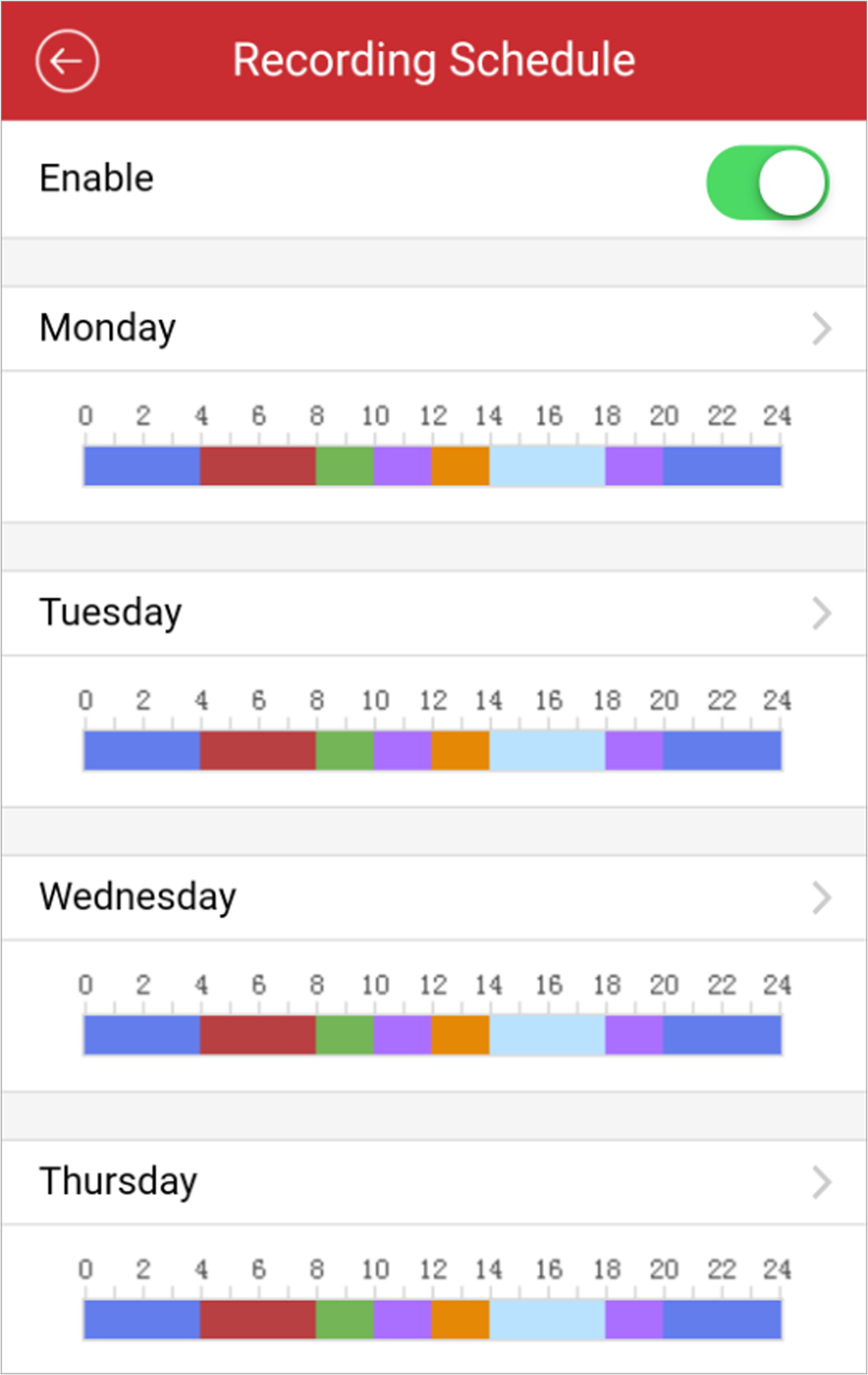

   Figure 4 Recording Schedule
