Two-Way Authentication

You can install a CA certificate (from the server) to your device to authorize the server, and create a certificate (from your device) to authorize your device by the server. This would improve the log communication security. Two-way authentication can be configured via web browser.

  • Download the CA certificate from the server.

  • Ensure log server parameters are valid.

  1. Go to Configuration > Network > Advanced Settings > Log Server Configuration.

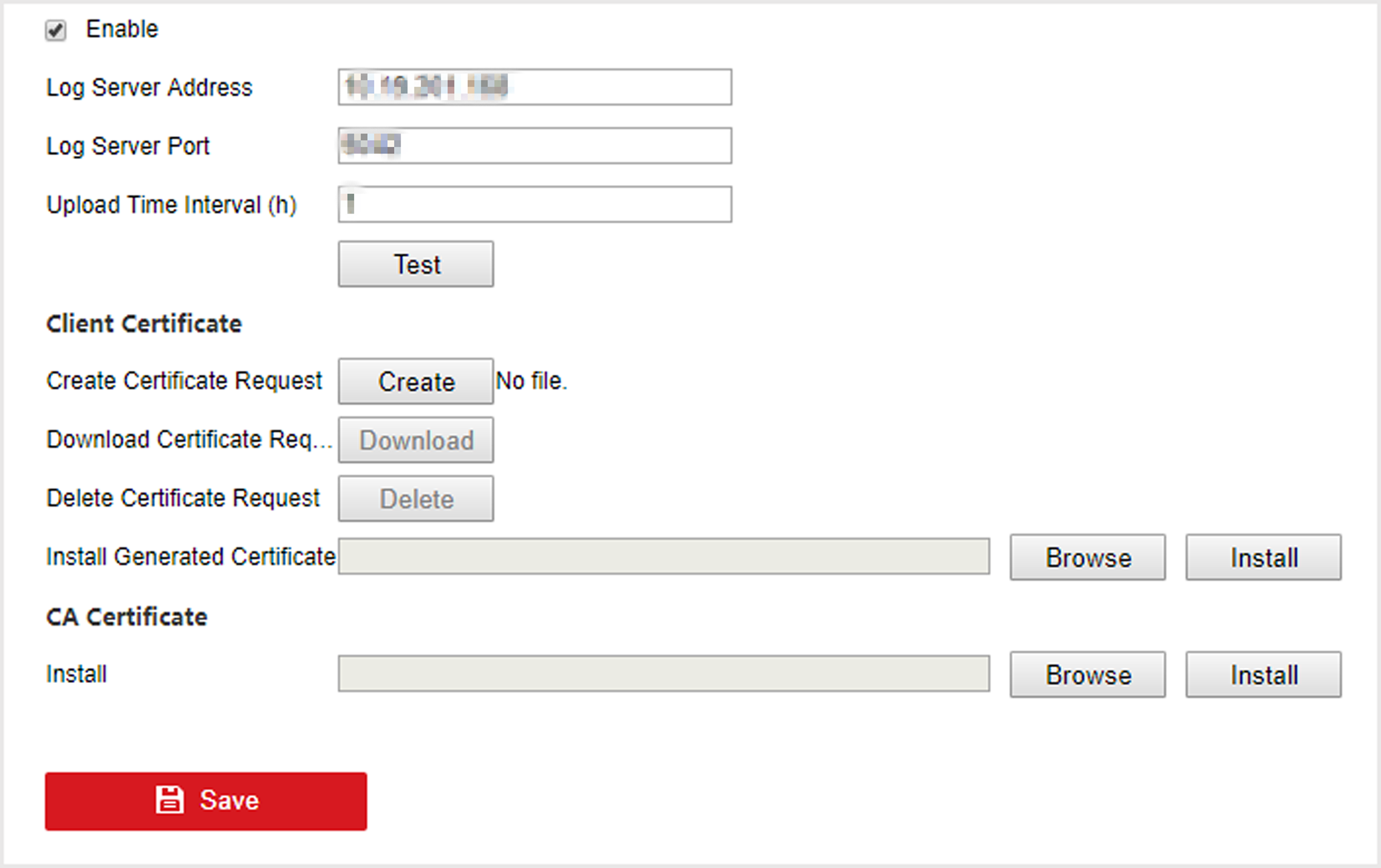

    Figure 1 Two-Way Authentication
  2. Install the CA certificate in CA Certificate.
  3. Click Create in Client Certificate, and follow the pop-up to create the certificate.
  4. Click Download to download the certificate file to a desired location.
  5. Upload the downloaded certificate file to the server, and the server will return the certificate key.
  6. Open the certificate as a text file, and modify it by the certificate key as the server returned.
  7. Install the modified certificate in Client Certificate.
  8. Optional: Click Test to test if the connection is valid.
  9. Click Save.
